MSI B850MPOWER AM5 AMD B850 PCIe 5.0/4.0 USB 20/10/5Gbps Type C/A Wi-Fi 7 Micro-ATX Motherboard
Product details
| Management number | 230432537 | Release Date | 2026/06/18 | List Price | US$92.00 | Model Number | 230432537 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MSI B850MPOWER motherboard, designed exclusively for extreme memory overclockers, features only 2 DIMM slots to ensure a clearer DDR5 memory signal, pushing the boundaries of memory overclocking. Teamed with MPOWER Alliance approved memory, gamers can achieve higher frequencies, delivering an enhanced performance experience.
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 10200+ MT/s (OC)
- Ultra Performance: OC Engine, 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- 5G LAN with full-speed Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- Storage Support: 4 x M.2
- Slots: 1 x PCI-E x16 slot, 1 x PCI-E x4 slot
- LAN: Realtek 8126-VB 5Gbps LAN
- WiFi & Bluetooth: Wi-Fi 7 and Bluetooth 5.4
- Internal I/Os: 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 4 x System Fan, 1 x EZ Conn-header (JAF_1), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Tuning Controller connector(JDASH), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 2x Direct OC Jumper (JBCLK), 4 x USB 2.0 ports, 2 x USB 5Gbps Type A ports, 1 x USB 10Gbps Type C ports

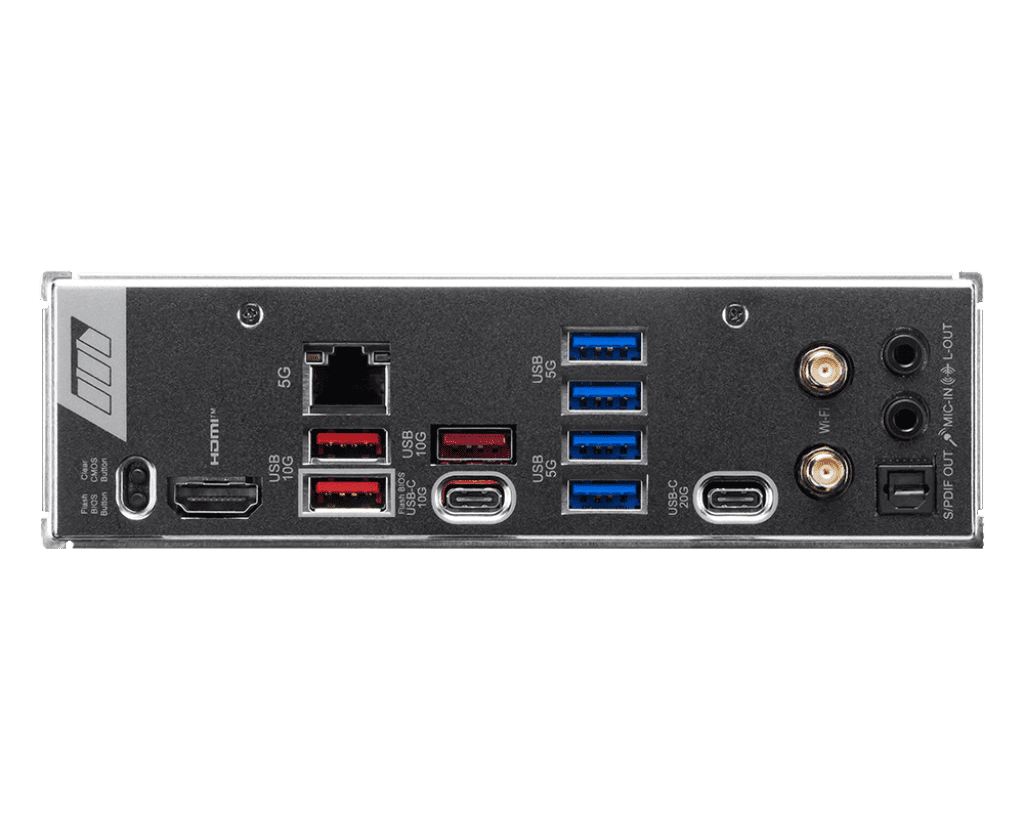

- Back Panel Ports: 1 x Clear CMOS Button, 1 x Flash BIOS Button, 1 x HDMI (for integrated graphics only), 1 x 5G LAN port, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x USB 20Gbps Type-C, 2 x Wi-Fi/Bluetooth Antenna connectors, 1 x Optical S/PDIF-out audio port, 1 x Mic-in audio port, 1 x Line-out audio port
| Cpu socket type | AM5 |
|---|---|
| Motherboard form factor | Micro-ATX |
| Proc. brand | AMD |
| Max RAM | 128 GB |
| Brand | MSI |
| Number of ports | 20 |
| Model name | B850MPOWER |
| Accessories | Quick Installation Guide; Cable Stickers; EZ Dashboard; EZ Wi-Fi Antenna; 1-to-2 EZ Conn-Cable (V1); SATA Cable; EZ Front Panel Cable; EZ M.2 Clip II Remover; 3 x EZ M.2 Clip II; 1 x M.2 Screw |
| Height | 9.6 in |
